Crashing Arena with a QC source
Posted: Mon Oct 31, 2016 21:13
by flo
Hi folks,
recently I ran into crashes caused by some quartz-composer sources which I use to generate text in resolume arena.
To reproduce the crashes, load the attached qc-file in a layer or in the preview monitor and for example pull the kerning-slider to maximum and... crash! There are other combinations of parameter-values that can cause the crash but this one seems the easiest to reproduce.
This happens in the actual arena version (5.1.2) but also in arena 4.1.6.
I am not a qc-guru, so maybe the qc-progrmaming can be done avoiding to crash arena, but I don't know how to do so.
Regards
flo
Re: Crashing Arena with a QC source
Posted: Tue Nov 01, 2016 00:57
by Scratchpole
No problem running this in 5.0.1 in my quick test.
Nothing about the composition seems awry to me when opened in QC.
Re: Crashing Arena with a QC source
Posted: Tue Nov 01, 2016 09:43
by Joris
Works for me as well on 5.1.2.
Btw, it looks like you're using this to make a horizontal scroller. If that's the case, you can use the Display Width output of the image created by the Image With String patch to see how wide the text is. Then you can calculate the limits of the X Position value to make sure the animation starts exactly off screen left and ends exactly off screen right.
Re: Crashing Arena with a QC source
Posted: Tue Nov 01, 2016 11:21
by Zoltán
I can replicate the crash on 5.0.2 as well as on 5.1.2,
2012 mpb, gt650m, El Capitan.

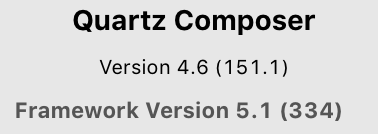

- Képernyőfotó 2016-11-01 - 10.56.25.png (21.26 KiB) Viewed 13100 times
the crash log is attached.
Re: Crashing Arena with a QC source
Posted: Tue Nov 01, 2016 11:34
by Joris
Here's the relevant part from the log:
Code: Select all
Thread 29 Crashed:
0 com.apple.CoreFoundation 0x9bd1a093 CFRetain + 179
1 com.apple.CoreImage 0x9496eb63 CI::GLTextureManager::request_intermediate_for_node(CI::Node const*, CGRect const&) + 1057
2 com.apple.CoreImage 0x9480d4fa CI::Context::recursive_render(CI::Node*, CGRect const&, CI::Node*) + 326
3 com.apple.CoreImage 0x9480d4b4 CI::Context::recursive_render(CI::Node*, CGRect const&, CI::Node*) + 256
4 com.apple.CoreImage 0x9480d4b4 CI::Context::recursive_render(CI::Node*, CGRect const&, CI::Node*) + 256
and
Code: Select all
33 com.apple.QuartzComposer 0x98eafd7b -[QCGraphicsContext renderPatch:time:arguments:] + 86
34 com.apple.QuartzComposer 0x98eaed40 -[QCOpenGLContext renderPatch:time:arguments:] + 579
35 com.apple.QuartzComposer 0x98eaeaf2 -[QCPatch(Runtime) render:arguments:] + 79
36 com.apple.QuartzComposer 0x98ed60be -[QCRenderer renderAtTime:arguments:] + 57
37 com.resolume.arena 0x002e5076 0x1000 + 3031158
38 com.resolume.arena 0x002e369b 0x1000 + 3024539
39 com.resolume.arena 0x002e7bf5 0x1000 + 3042293
40 com.resolume.arena 0x0015c6c3 0x1000 + 1423043
The important thing to note that QC crashes, and then takes Arena with it. Recursive rendering would imply that it crashes in the blur pass.
Re: Crashing Arena with a QC source
Posted: Tue Nov 01, 2016 12:11
by flo
Thank you all for your testing and the answers.
So it could be a that the qtz-file has an error and causes the crash?
In my testing I realized, that the crash happens when the video memory is nearly at capacity limit. Could that cause the crash?
Regards
flo
Re: Crashing Arena with a QC source
Posted: Tue Nov 01, 2016 12:39
by Zoltán
I removed the blur from the signal path and I couldn't get it to crash.
There is a blur effect in resolume you could throw on the QC clip.
Re: Crashing Arena with a QC source
Posted: Tue Nov 01, 2016 12:50
by flo
Gold idea, to remove the blur. I'll try that later.
flo
