Resolume and Black Magic Design UltraStudio 4k Extreme 3

[LightGuyCalvin]

Hello,

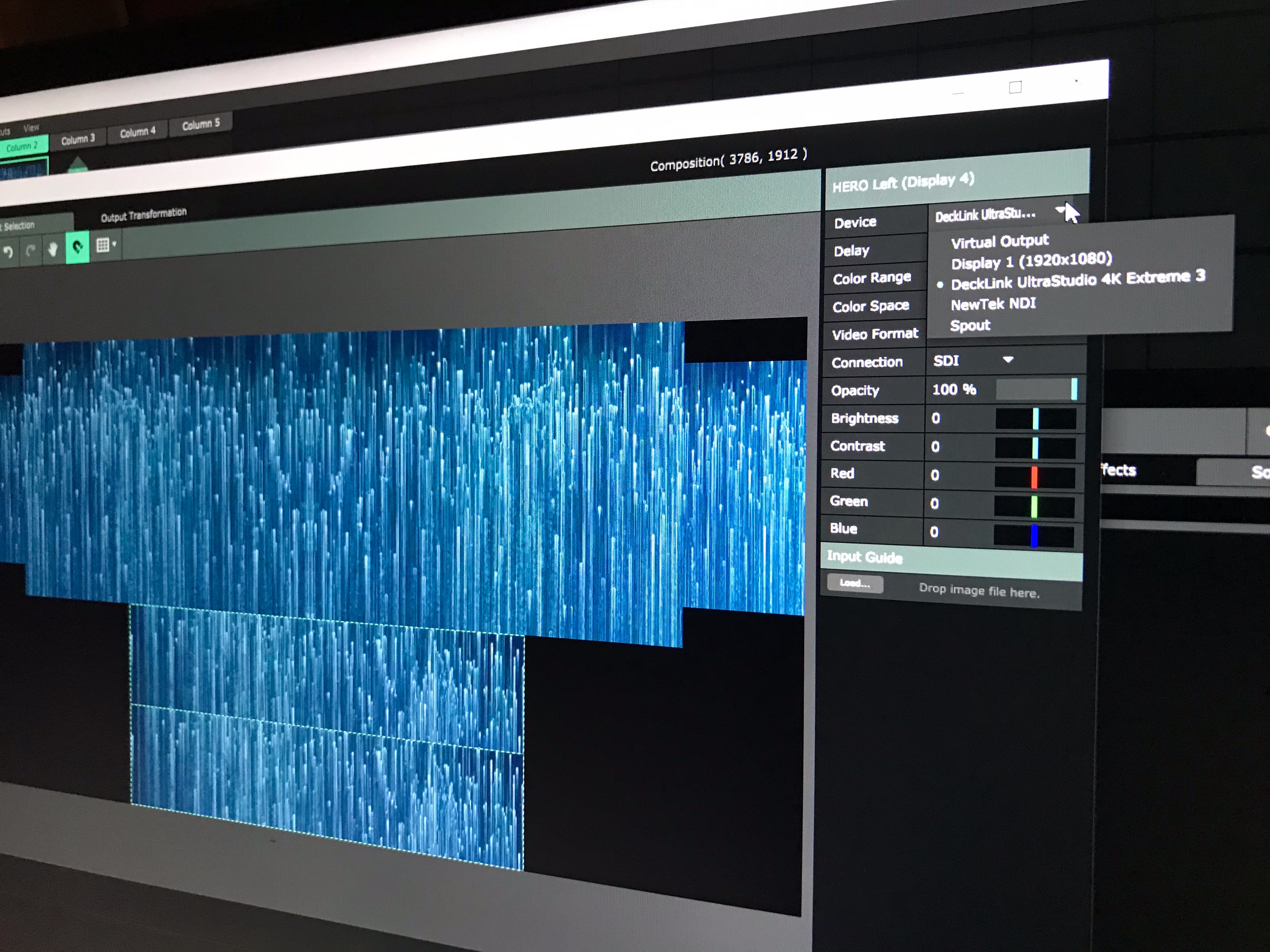

Does anyone know how to get Resolume Arena to "see" the various Capture and Output sources from a Black Magic Design UltraStudio 4K Extreme 3? All I see in the Sources Tab and Device selection is the main unit itself. I've included a photo for reference.

Thanks for any and all suggestions.

[Oaktown]

How is your Design UltraStudio 4K Extreme 3 connected to your computer?

[LightGuyCalvin]

It’s connected via a Thunderbolt 3 cable.

[Oaktown]

It appears that this unit can only capture one signal.

[LightGuyCalvin]

It appears that this unit can only capture one signal.

How did you come to that conclusion, because there are 4 separate SDI Inputs and Outputs?

[Warspite]

Check Blackmagic configuration in desktop video setup, is can be configured as quad-link, so all 4 connectors are used just for single input.

[LightGuyCalvin]

Check Blackmagic configuration in desktop video setup, is can be configured as quad-link, so all 4 connectors are used just for single input.

Thanks for the suggestion Warspite! Have you tried to use this setup as well?

[Oaktown]

If you look at the specs for the unit, it says:
SDI Video Inputs
2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.

SDI Video Outputs
2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.

.../...

Computer Interface
Thunderbolt™ 3 (Mac OS and Windows), PCI Express 4 lane generation 2.

And none of the literature or reviews make any reference to being able to having a second I/O from the Thunderbolt 3.

Have your called the guys at Blackmagic?
