Soft Edge one side only

Post by VjLuper »

Hello wonders! I have a problem with soft edge. I need to map this nice texture onto two objects. Because of the way the objects are built, I need the soft edge to work on one side but not on the other.
Let me explain better: I want a soft edge between 1 and 2, and then again between 3 and 4 — BUT NOT between 2 and 3.
How can I achieve this?


Zoltán
Team Resolume
Posts: 7654
Joined: Thu Jan 09, 2014 13:08
Location: Székesfehérvár, Hungary

Re: Soft Edge one side only

Post by Zoltán »

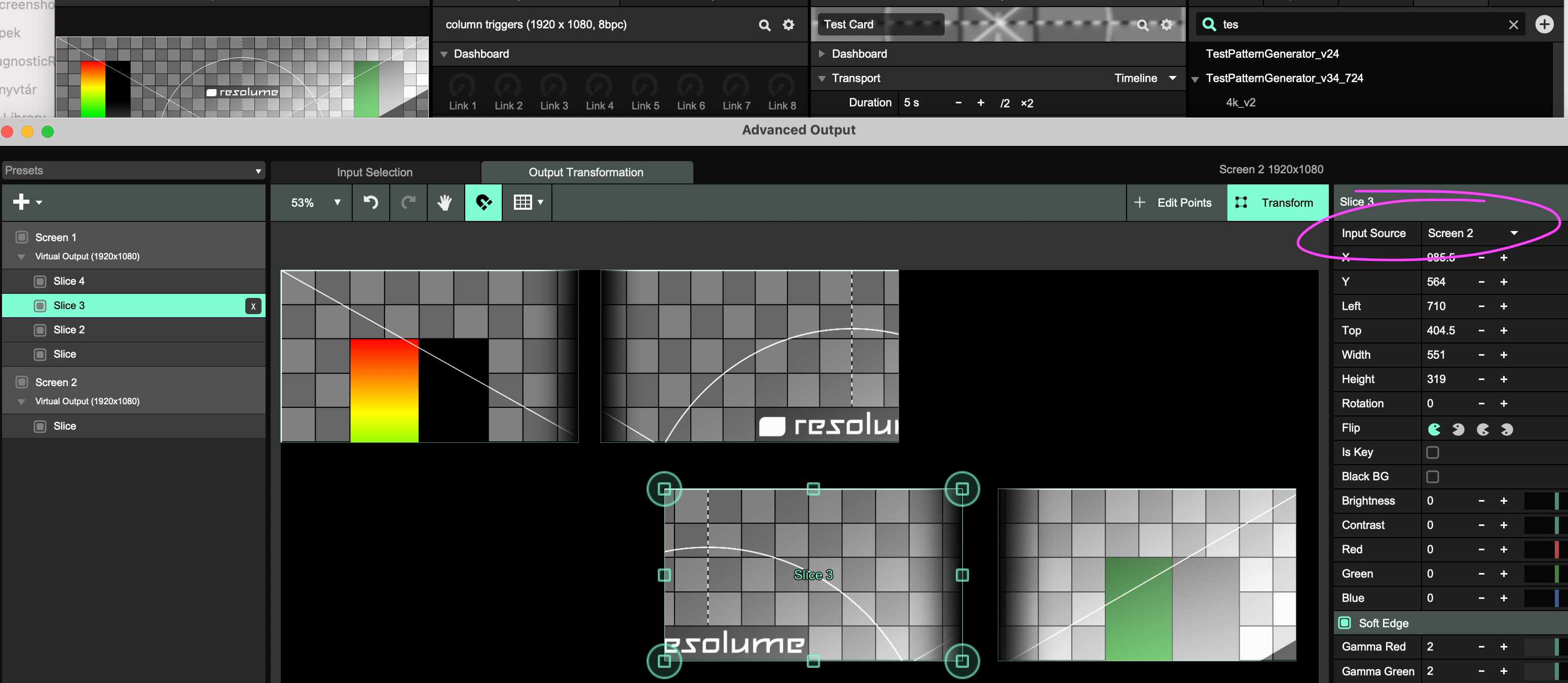

Slices with same source are doing soft edge groups.
Create a new Screen, then set the two slices on the right to get their input from that screen
Attachments
Képernyőfotó 2025-10-27 - 9.20.20.png
