Black Magic SDI Capture Card Resolume 5 Arena

[Chad0034]

Hi

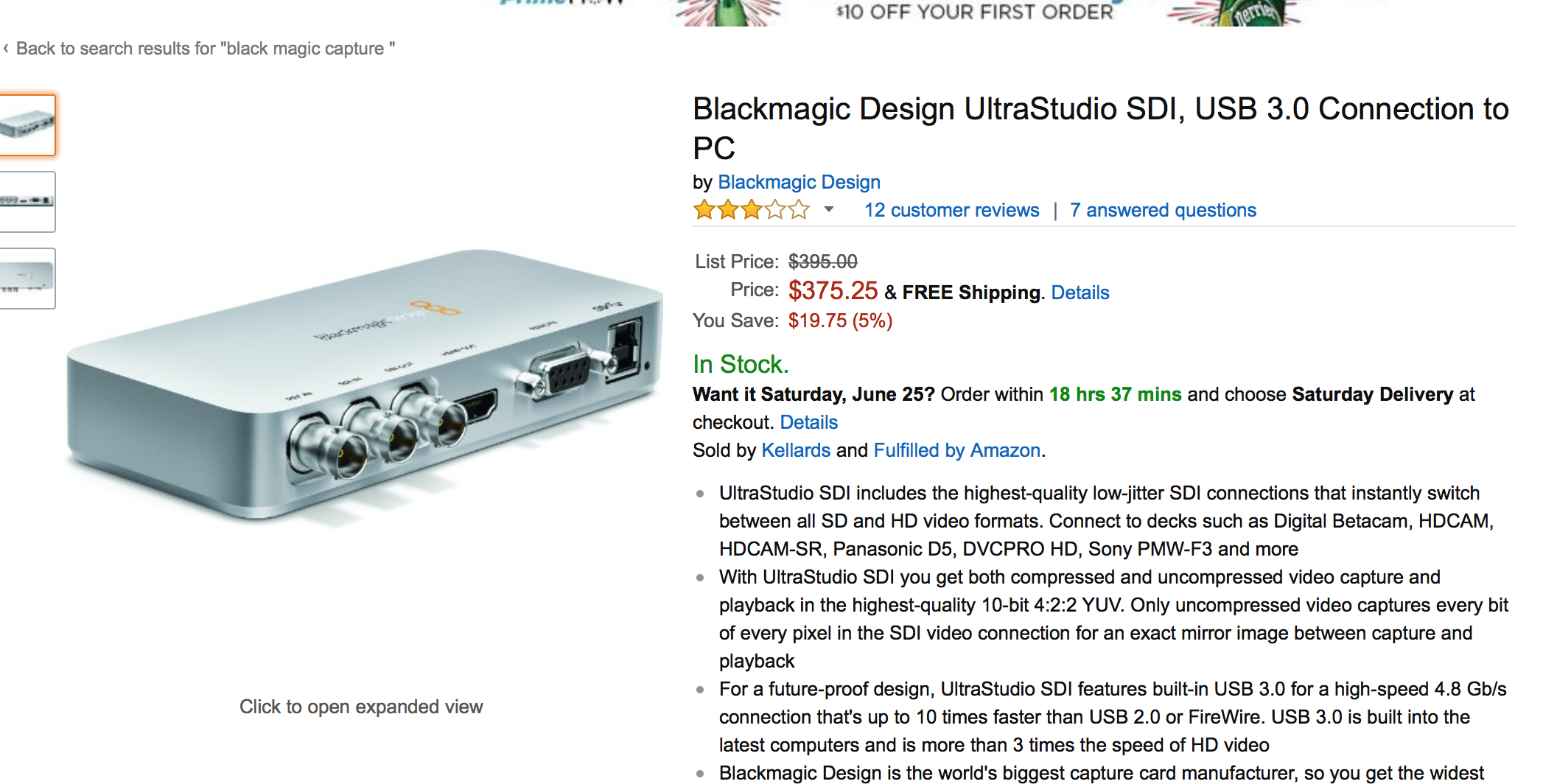

Couldn't find a subject for this particular capture card. I recently got the SDI recorder for PC. Im taking a fiber HDSDI from video IMAG world, and want to run it thru Resolume to blend content in with it. (Have it on 50 opacity or cool overlays and blend it with the content I run)

Are any of you familiar at all with doing this in the past? So I'm getting proper signal from the HDSDI that he's sending me. I currently have the SDOut going into my Image Pro. In Black Magic Media Express, I can see everything just fine.

But in Resolume, I see the capture card as a "source". When I drag it onto the composition, I cannot see anything. Pure black. I just am not sure if there are certain settings in Resolume that I need to adjust?

Thanks in advance!

[Oaktown]

Make sure you set the right resolution in the clip. As a note, Blackmagic devices won't auto switch so 1080i60 won't work for a 1080i59.94 signal. But since you're using a BARCO Image Pro, you should know exactly what's your signal.
