DIY Media server with 8 outputs and Capture card

[LittleOne]

Hi guys

I have read alot of posts on this topica put still have a lot of ???

Trying to build a media server PC because 20-30k for a real media server is out of my range.

-Shold I go Intel or AMD.D I need the new Threadriper 2970 or some lower model can be good enaugh.
If i go Intel should it be I9 or Xeon

2x Graphic card 2080 ti od Quadro P4000.??

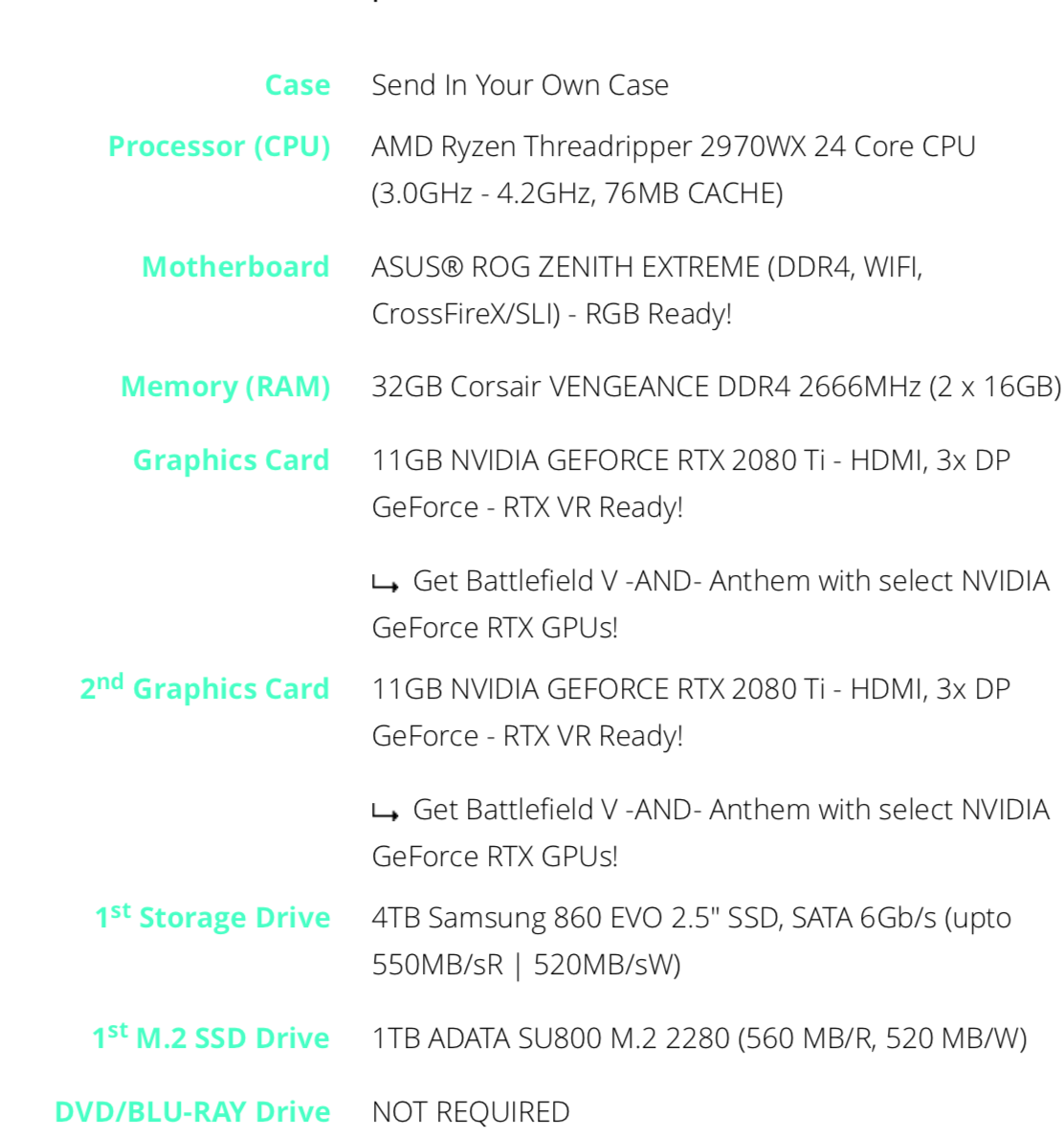

I have some spec in attach that I tried to build a configuration that you can see in attachment.

Also I have an option from XI machines for their Resolume server which is a tested option and probably more secure option.
Spec is also attached


Thanks for the help

[He2neg]

Because the render work is done on one (your mail) gpu you dont need to get a 2nd high end card...

When talking about Outputs you will also need to tell what resolution these outputs should have. Also a point is if the outputs need to be framesync (softedge).

8x 1080 = 2x 4k. This can be done with one card and hardware to split the 2 x 4k signals into 8 x 1080 after.

https://resolume.com/support/en/lots-of-outputs

For some performance stats you can search this doc.
https://docs.google.com/spreadsheets/d/ ... 1522306833


The other importend parts dont look bad...
[*]m.2 SSD is the way to go for System & Content
[*]Enough DDR Ram (>16GB)
