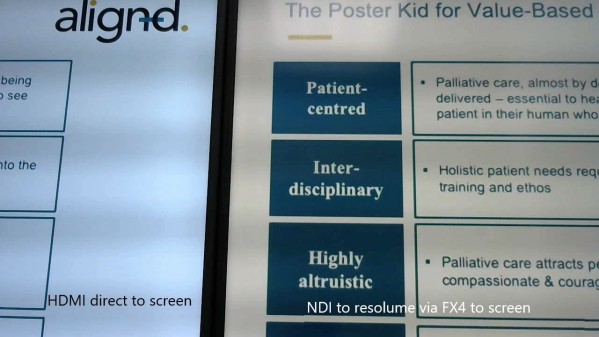

I am busy prepping for a corporate event with a triple 1920x1080 screen setup. We will run 3 Christie LHD720i projectors(for testing we are using 03xHisense 50'' screens in the office). PPT will be displayed on the 2 outer screens and relay to screen on the center screen. I have created a 5760x1080 composition in Resolume. I have setup custom (5760x1080 60hz 32bit progressive CVT reduced blank)resolution in NVIDIA control panel. I am running display port from Gtx1070 to Fx4, Fx4 setup with 03 x1920x1080 60hz screens and input 5760x1080 60hz. I am running NDi signal from both Mac & Windows PC into TP-Link 16 port Gigabit switch) and into Resolume server respectively. All the connections are present and i receive the respective signals into Resolume. However the quality of the ndi screen in Resolume seems fuzzy compared to signal directly from HDMI into screen. If i run any footage from server direct then output images sharp. It almsot apear as if NDi out is out of focus. Not sure is this make sense.
I would appreciate any help or direction in this regard as i am new to Resolume and only used a few times before to blend projectors.
Attached please specs of my rig
Corsair Carbide Air540 E ATX Desktop Chassis
Intel i7 Skylake 6700k 4Ghz 8Mb Processor
MSI Z270 AC Motherboard
MSI Geforce GTX 1070 Graphics Card
MSI Core Frozr L CPU Cooler
Raidmax ATX Power Supply RX-730SS
Black Magic Declink Mini Recorder 4K Capture Card
Black Magic Intensity Pro 4K Capture Card
WD 128Gb SSD Drives x 2
Toshiba 1Tb HD x 1
Crucial 8GB DDR4 2133UDIMM Ram x 4
Resolume Arena 6 Software
Windows 10 OS
Datapath Fx4
