I am trying to use a pixel controller with 32 universes (SmartShow-NetOne) but Resolume Arena only seems to allow me to select up to 16. (0-15)
The controllers I’m trying to use are: http://smartshow.lighting/netpixel-one/
It may be a stupid question to some hardened pro but I can't get my head around it.
Any help would be epic.
32 universes controller mapping
Re: 32 universes controller mapping
There's only 16 universes per subnet, so just jump to subnet 2 to span the rest
Re: 32 universes controller mapping
Yes. Nailed it. I can now control all 32 universes per controller.Arvol wrote: Wed Jun 01, 2022 18:03 There's only 16 universes per subnet, so just jump to subnet 2 to span the rest
Thank you so much.

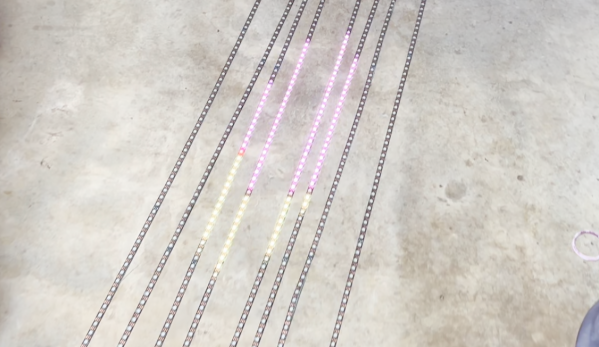

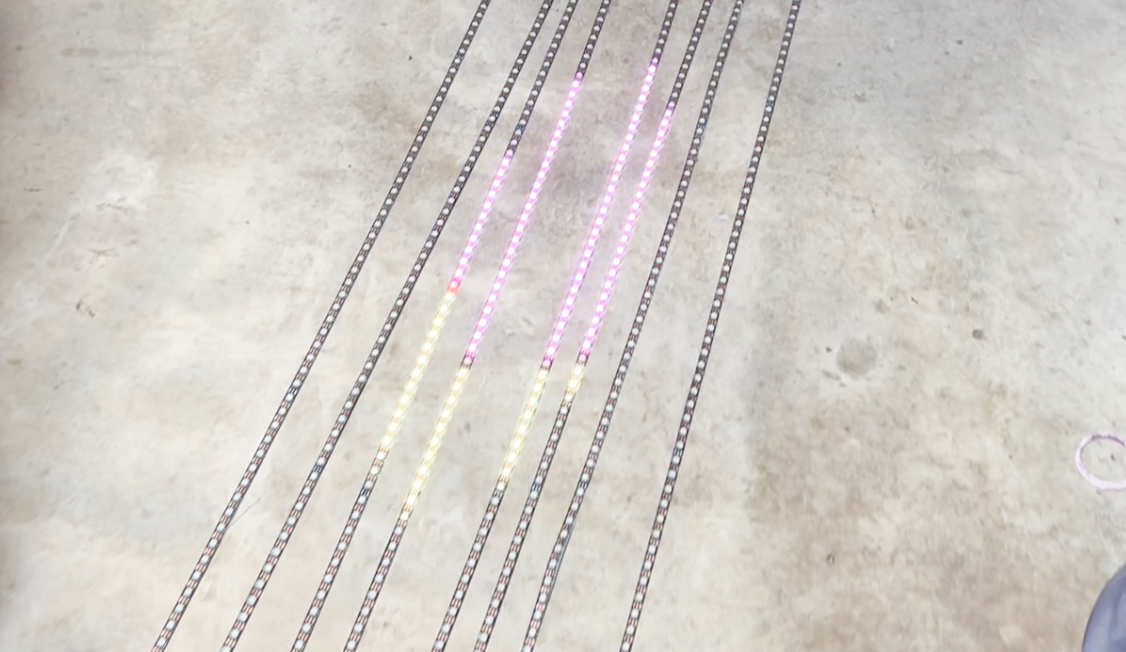

Now I've got this spare pixel flickering at the end of each universe and it changes the colour of the following universe.
This has only started happening after the latest update?
It has messed up my other 16 universe panel and controller set up as well.
Re: 32 universes controller mapping
There is the "Align output" option for the Universe auto spanning, check your controller how it addresses the pixels. With Align on, the next pixel will start in the next Universe.
I think you need to set it to Off, based on your picture.
I think you need to set it to Off, based on your picture.
Software developer, Sound Engineer,
Control Your show with ”Enter” - multiple Resolume servers at once - SMPTE/MTC column launch
try for free: http://programs.palffyzoltan.hu
Control Your show with ”Enter” - multiple Resolume servers at once - SMPTE/MTC column launch
try for free: http://programs.palffyzoltan.hu
-
- Posts: 1
- Joined: Mon Oct 03, 2022 20:26
Re: 32 universes controller mapping
Hey.
I'm thinking of buying one of those. Any chance you got a few pics on how you connected the wiring?... soldering etc?
Best.
Thomas
I'm thinking of buying one of those. Any chance you got a few pics on how you connected the wiring?... soldering etc?
Best.
Thomas
