Texture nodes breaking instancing?

[JBroadway]

I have rectangle going into a transform node, and then a linear node going into the translation input. Instancing works as intended and the rectangle is duplicated.

However if I convert that shape to a texture (or use a Texture2D node like crop) then send it into the transform node, instancing no longer works. Furthermore, disconnecting the texture node and re-connecting it in the original configuration no longer produces an instanced output.

Is this a bug?

Video example

[tijnisfijn]

Hi Man, I am getting your confusion but it is working. The big differents is the shape system will count in relative numbers. So in case of a 1920×1080 resolution the shape system will go from x = -1,777778 to 1,777778 and y = -1 to 1. And if you use a texture, wire will count in pixels, so that the translation will go from x = -960 to 960 and y = -540 to 540. So in your example that means that the textures only move one pixel Max so you don't see the movement.

I made you a little patch with some explanation. I hope this helps.

Wire Patch Attached

Copy Show

--begin-wire-patch--

3250.3oc6bs0aiabE9uBgdouHRL2uruIKYWjh1zhlEnIXgQ.kHkManHUIorWmf7eumYnjHk0HJJeIqzlMKht4yLbly46bcNj+1fY4YYwypRxyJG7gO8aClWju.9.kLbP9ppkqpPCtc3fpbyuwFNHIq9m98gMjRGNXYXUUbQVCoB2jxGNnHtLOck4BtO03coFuYMzPoZ3fY2GBK4zmMyntn8YyqZeZ0.s4oo0bhcoV6fSPVuf2gRF147ljEE+4iRnb3fxXmWegiqur+RBoadqb+k.ropJByJSC2aQv1mkwQt3AbXqEVtD1GElYYK0L358XRT086Ns6uJ3BmSKZel.2sPPr+T5lEv36SoxIe8Papsju6DyUNVrtkXb2LfCJFbrj0NmXWrAs6UK1oNo.4dAq2adEXmTJbHx1R5tKAA1sz8PrAgvs7P3lIKjNVI7F73sqG0+rHJtn1VBngB7ZfIxTvecQbU3fO7aCBWUceNPwfAf0hvp36xKdZvGxVklNbPT7xz7mVDmU8wvh6hqLzOEV+ytul9rvEwvm9OIEwv2dHtnzrq.hVD9eMyIrFWjjY9DVX0hMCD86+tYlKmUjrzxErSUTR4xzvm995YD9gjH3xlLOwr5GDGRQZrXpOBiz9LcLxeJNR6OMhLUNGi3wZALlzjYwYkw2jjtdRV+CMy5hvjz5OkWjbWRVX5qdmo1tyHlc1+aUXZREvBoDkA12BFBC+93j6tGtZXjBsQX8ArlffQVF9P7a8po59UKllscSupX8GdHNKpVpCDkE+4puOOJ96hfoBfnYvmKMSOEYQHUUEISWUU+aySyez7d0SKMqI6Wg4KLck4qkI2A7TyjljUVA6f5Asl3jL.eABzsziMqwo4qxhJaycTjFdiwI3mG7AeLCiBnZtVKPZpDf5.O1WpCHZIC9cIGq4TLgCy3rzvR6Dl.6nARoPKIBt+UjQDe1X7Xe0X1XehFymHUiGqtV2lshsyP9reAF6C.LLef0OpkcMG9OQHBY+I6Nrp9BYsY2rSq.V5phXRTyd0nRY1t2mDAPaPkrEKZXMe71sh5OVOduuKaPKg3O+PRYxTC3tpXULLWT79BnWCiGiDsPk7MbdIeeNOAyOAVOKZpvmwkTeUXnzmQnBxzYLlF1AsX8jW.qeyZuMjLrp8VETBM6zmSBqglOgFZ+GXgcy1+vS2AjgMBu+MXDOL6tz3tkcj8kcFU97B+5qbCXx7ViNlcAQL5X8WWDPmGYVaPr8V4EY4rUVeY8YMal4xYgow8dC1xYYOGiaXsIp6mCqEbTfPIvbIAPnBRMtl.FTHJIQSXJDSnjc.p0DBfrQfGI8DxDe9MJMXJgMdLk9ZA00.gmiBIsPrFH6sCeQud6FHQ2Fr9jMHfS4kaaAHNrFzFks1+61MPit2xA7gv+a1FuSe51cAcuaBfcrgrVuss6fVZrNzBdtZ2NpUC2wJRKWJlYYddwhtsJQeMt7mktJJ1eQ3maQ9z77zFxWeYJS903iZaoWlTNQ+XZrhfIJMZiBOVfBHRIRwnbDWwMd3NrJ+Hl5Je1naz9Jsj6eMEInWgnxIrwuVU9c4ZNbhAg3cXBP6BoVyq1hrZDLM.h+dRVbXQ2nA19ngoIUPdA63hbOwmQ5AySVzOu.hk7XTdRtwP9QIPFIk0E24HHn0i3D770Dtte3T6G6zjjIz8glf4uc2w1mscKxKhMp2Oz8kZH1ZkLdYHjg3QiRvXO9.ZGlb4etxADF2qzaHUSz9j4z49ZdrBRRCQEygojIYsUMnuznqQuGdqfI5nxJ5tpVsv0sTvZvYtvo6I11Gr3FO3FPNrQIrQc9eDCoN1s1LeOs49GtjaqmTRs0SgFxOWp6FgDOSv7Yr4R+oLlvOJlDhHDzL9TUaDB5zQHsEPMbj+kIQXHEp44cyVDuFWduHSR39Nhd3pjr1SIpWATC+A7KLJ51YkuEU.xu8QEDgr+nhQnIf0Bhdj+HNW4KzWMlqlflvH72jrxQcFDmwp5vWzqaihFeTq1th1yJV2H4baynVX4BxzRqeUZUxxzm5FgKeuqiis9UaJ0+Q7LYCHreg2cJPQMQEn4LMWf3VWU0g2QQALBAyzBthf5tJEBkVCQ2oG6qHitxWyzRH7PJkwP+A.EeCRnC+NdAZNImCEa+mLvsgmxKOS03YHng6EF690Z4uFVcDmdp+nrt+RLtmsZg+5yyqrOF46UTrml06WYk8nRJALeGE5K3zX+oBFNhExzDB60pyr8PQOdcUacpnmXQX2Ehsi7vsU4trF+2xSNRAa06iFaNi1dBbrYW1Ln9hlaMjSpTfQPLxmhJfg99qgYnt6kylKik7p3hk46UbFm4W8XQ3xkIY20Mc8NCIM50lgzH4jI9rwZluVbM7oQ7qAkNw0iDidsEOn0472yrjtcC2+nrmFcksbzmKI1GOtOba3A.56.Y1AQ3.70tH6gQcppwvmQGdkDiBTJHDERavCScBkdRqg3RX2ntxWckdhOUvDSFKTiFIdyO8JGkrquGb0O7Xh4zG6Tvve4Bl6CK6S4EsjkjcLx5oXd3qr1b9FJxsG1co+L.vTcLSWqxRNJM.Fa8QEehF2bBP0RHONlDreokM.TLiRB.hNF1bBgxA6YhQ9WIDXeDD870b9XI4ladSp8SG08LPSgzO0ZP6hKXbLibDrZC5nVr0.ppkyOWTskSuVrzJ2q7Gh89wtw5hug0uTv5bNJ.yXJHz25vgOGw693+Xg2+T2va4ac+GHckkhBGfwXjhpAWkqSSQIAmmLrRQnDFA2YfWeq6C1WxoNmZsGIOPI0HhhVWhFqDVHPARhjx4PhnnuBasGORmhHN5RuAQtn6OD2lcDbc.EwEBloZ2mo8FxZaI8E41ml1.0mFzXSWTz+lnvtROaaFBNtuGXFZe7CAD9AHLBdqUTFJJ2DjAhQtLOrL9EeWqc4XTxAnRgjA..AQvrV1jnh.vIIhf1TH2uYWxUqS70gMIGUOILETZLso+Q6zljzzCln37vzRyUXddVk+yN04mGFptt2IZeAKgUjszfaP2i7VKX8Byh7B8JuObYrWRlW08wdkvd1ydQbi9YXBjYu.BrmHvRr837VqL.wsGHERMiQo75isv5ulibFEIhzKG1zw3I9Lgbh+HIg3itYLLFNUQkmv4XDglgwxNr2VyzF1Rh0leuV.05zsfTGV1MbPbVYOdYQ9r3nUEmThBuiFjeuCRTgXAJNUnURJp4TmUBRf.Q4RAjDClewEoXKw3anI4ck4ecXMV9kOM5lDV.CiJN.CoJwZSl15ZAwgBlEELMCeDifWKu9FefNlu5lwD+IJj55qQfc1wW89z.D6hZb2CCG73n5ns.tYCLpCQ2YciA7V00W8souNktF.fXAThhvjHYiiVLSBdZEXMUwpS34LpmubIM5cU19BzwVb8YjcESfUfDUqwDbSehfMsVEkg0XklcjlD4OS1UDn+LXW48oaR4HZ.DxufH000GoFoAY6FvXlty6ndvPS3PzTJ909JLchuDIlLgO4lqUpIu+sv257LOdq3QFRdW6JzIIlMU2vT72fou3ldlyBfzA3aZt4S1d3Wzddt2nzyhdWVPtTp2w37LPxU44i8px8ru3iCjRox9c6mBN.LifDALhRtw+5ZHmIzclYbaqnQsYRp6.vv79F.1EZ0NDzKYvfVfLuadyTQLeNy9c3sCgJ3z.LhoUaJsvVXgHPPYzs9C2hKbFnFRR6qgoKUbA6RAW7w6SJ8JuO+wRumxWYKEZTx74wEvB0q7oxp3EkAd2muLF9agUdKB+kXX.lmhIGptTXrHPQ0DJc6AUtwiEiqCv7s.DvHhiijhy3eMWgTA+8+YjAlKCDDBecSbt9TYHABPqCIjTEQct93wfbl1fJBwq3rWoBNX3D3t.9b2CCPEfHfC0dbRYmoG.qP9sxVc7xV4nT8ZY.XfCuapkBNOPC5c8nm+NyqYE4Kdj5R7khS3eHGbtB9gWDGlUV6mMYt0e7ifHwDSlwsqWnWwFSUCWSUoW7mCmUk9T8gXBKEub6HK7JmUDGmE38S4q9KoodYwwQVh1NGd+nyA+wGgUCvzKs+Z8i.NO6y.NaTh+j2i.qwaZr2gRQkfAmOPv+TtrtQH2h8ACcARJX0hs496Zys5uKiibNt2FGuHiEX8ybgUEy13NYUh8lmAFdg8ggmk8fE3.HlbHVos2Py9fy8.Mr6EPV9Ve4CG7q4lGDePJ+ThILbFQRf3zIhcuUI+j41K2paXMca8qYiIwFzpMiFaNt1BxXKdns3u1imvd7R1i30dr+1luw1TR1dCz1Cm1Vv01l416qB6s5q8VewdqlYu6Gs22+1GkG1mtK1G7T1mbXCMOe2fD7++.B6ukCB

--end-wire-patch--

[JBroadway]

Ahh this is very helpful thank you.

I believe the transform node holding its texture2D state even after reconnecting it to a Float is a bug no?
Once the transform node is re-connected to the linear node the transform visual out should reflect that without having to re-add the transform.

Please lmk if I'm mistaken.

[tijnisfijn]

Yes, I guess you're right about that one that should not be like that I think

[Christoph]

Yes the transform-node not switching back to shape-mode is not expected behaviour, thanks for reporting that. This should be fixed in one of the next updates.

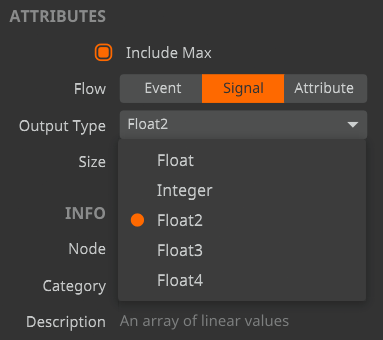

In the meantime I noticed it seems to only break if you feed a single float into the translation-inlet (which expects a float2 but can automatically convert a single float to a float2). Little tip - you can also set the linear-node to output float2, then you have individual control over the range on both axis:

Screenshot 2023-12-20 170212.png (28.51 KiB) Viewed 12169 times

[JBroadway]

Yes the transform-node not switching back to shape-mode is not expected behaviour, thanks for reporting that. This should be fixed in one of the next updates.

In the meantime I noticed it seems to only break if you feed a single float into the translation-inlet (which expects a float2 but can automatically convert a single float to a float2). Little tip - you can also set the linear-node to output float2, then you have individual control over the range on both axis:

Screenshot 2023-12-20 170212.png

Thank you for this, looking forward to the update.
