pj link - control beamer from resolume

[nicholas]

Hello.
Is it possible to send PJlink infos or html infos from resolume to the beamer ?
I have a Panasonic laser beamer and I need to send him pj link to swith on or off the beamer every hours.
I play a 5 minutes movie every hours.
So I use the autoplay.
But my projector need to be switched on synchro with the movie played.
Thanks.

[Zoltán]

This is currently not possible in Resolume.
I've read that there are libraries you can get, in pearl and python, it would be possible to create a scheduler program which would switch the projector on, play the clip via osc, and switch the projector off when the clip has finished.

[drazkers]

I think somebody posted an example toe on the touch designer forums. May be more what your looking for.

[nicholas]

Thanks for the answers,
i have to say i don't know touch designer, i guess it's a scheduler program as suggested by Zoltán
this ?
https://www.derivative.ca/Forum/viewtop ... ink#p31176
https://www.derivative.ca/Forum/viewtop ... ink#p37326

[Oaktown]

PJLink is based on HDBaseT protocol and Panasonic large projectors take Art-Net so you should be able to achieve what you are trying to do.

I'll be assuming you have a working understanding of Art-Net.

First, take a look at this document on HDBaseT and PJLink, then take a look at the manual for the Panasonic RZ12K (as an example) , go to page 164 for Art-Net Setup and page 197 for Using Art-Net Functions.

So, by using timed [Solid Color] clips, you should should be able to turns your projector on & off by sending Art-Net values to your projector on Channel 8.

Just make sure your Net/Subnet/Universe are set right.Also, if you have the right HDBaseT transmitter (Panasonic or third-party), you should be able to send Ethernet, Video & Audio (as well as RS232 and IR) on a CAT6 Ethernet cable.

[nicholas]

thank you, that's will be good training for me

[nicholas]

I am near... the projector get the artnet infos, I can see it in the artnet status, I made a solid color at 50 and another one at 250... but the projector don't turn off ...
i might have forget to enable something somewhere...

[Oaktown]

What's your IP & Artnet setup?

And what do you mean by a color at 50 and one at 250?

[Oaktown]

I would use a black clip and a white clip with a single luminance channel fixture to get 0 or 255.

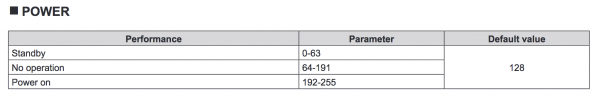

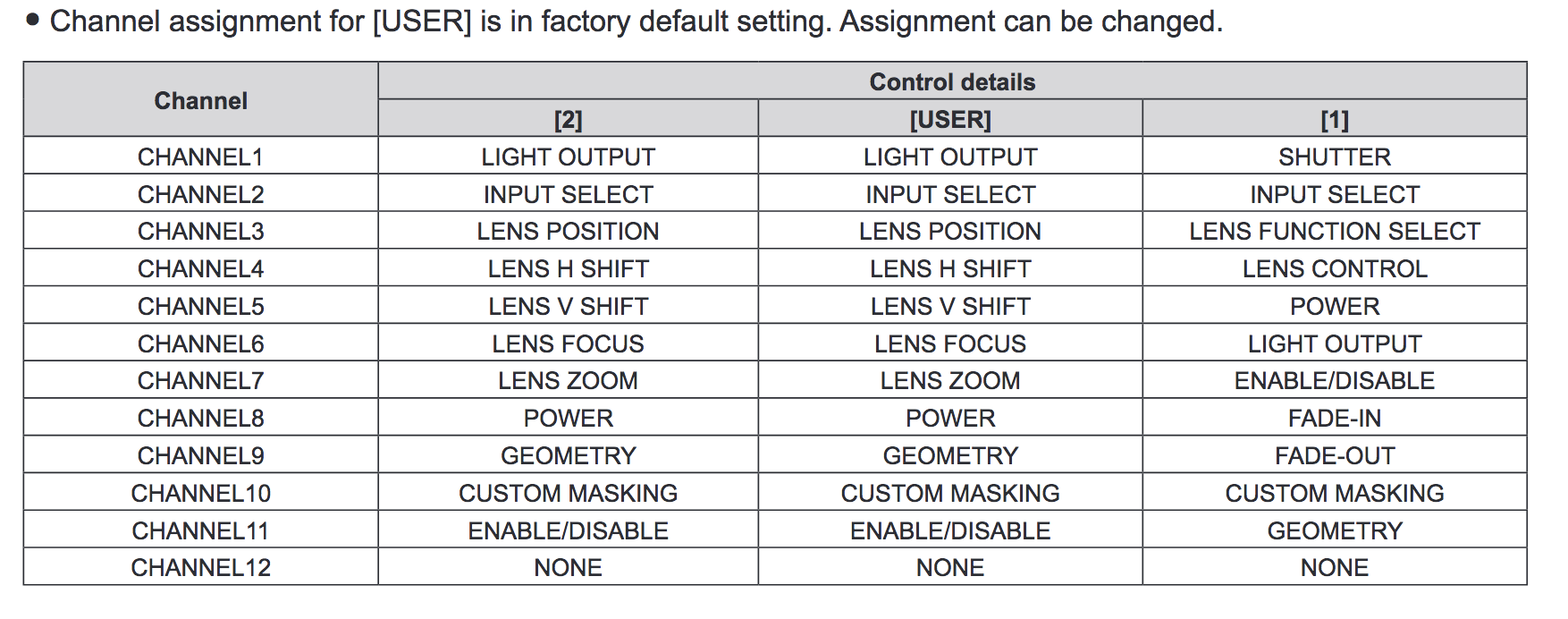

If you use channel 8, make sure your channel assignment is set to [User] or [2]. Otherwise if you're in [1].use channel 5 for power.

[nicholas]

Hey, working good now,
that was the channel 11 that need also to be controlled in order to enable the artnet commands.
a big thank you !!!
