Midi Overlapping with APC 40 and APC Mini

Post your questions here and we'll all try to help.
Post Reply
robthetennisman
Posts: 3
Joined: Mon Apr 23, 2018 20:00

Midi Overlapping with APC 40 and APC Mini

Post by robthetennisman »

Hi, I recently got an APC Mini and have tried to map it along side the maps from my APC 40 but some buttons appear to do the same things (they have the same mappings). I think it is because both the midi controllers work off midi channel 1 but I am unable to change that.

Please could somebody lend a hand here? :D

Ideally i would like to select the clips with the APC Mini and have all my effects on the APC 40.

Thanks,

Rob.

User avatar
Oaktown
Resolume honorary member
Posts: 2837
Joined: Tue May 08, 2012 15:19
Location: Oakland, CA

Re: Midi Overlapping with APC 40 and APC Mini

Post by Oaktown »

You'd need to use a third party software such as Bome MIDI Translator Pro or create a TouchDesigner comp between your APCs and Resolume to change the notes/CC channels from one of the APC controllers into something else so that they can control different things.

robthetennisman
Posts: 3
Joined: Mon Apr 23, 2018 20:00

Re: Midi Overlapping with APC 40 and APC Mini

Post by robthetennisman »

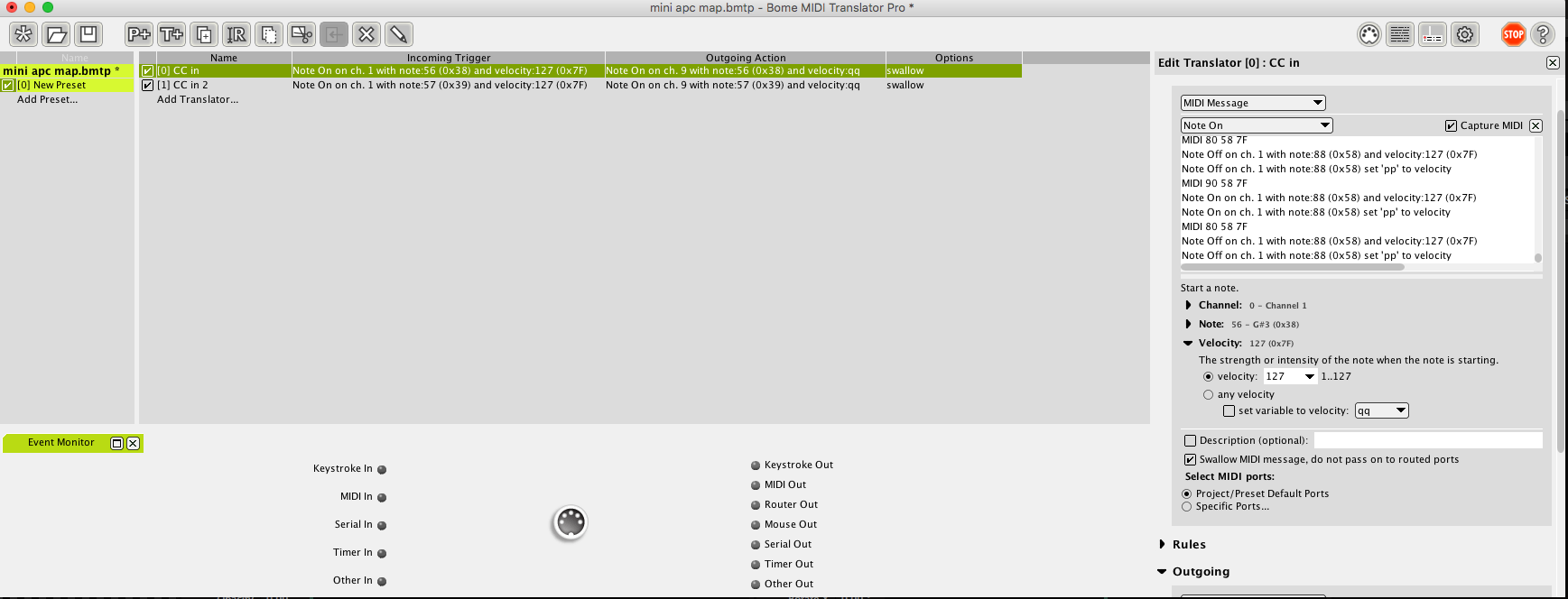

I tried re-routing 2 notes/buttons on the Mini APC in Bome so that they would be translated to MIDI channel 9. I'm not sure if I have done it right though because resolume isn't responding to any inputs from the translated buttons.
Attachments
Screen Shot 2018-04-24 at 14.54.17.png

User avatar
drazkers
Posts: 968
Joined: Wed May 18, 2011 10:54
Location: Brady V up in Canada

Re: Midi Overlapping with APC 40 and APC Mini

Post by drazkers »

You have to open the ports in your settings and select bomes in Resolume.

robthetennisman
Posts: 3
Joined: Mon Apr 23, 2018 20:00

Re: Midi Overlapping with APC 40 and APC Mini

Post by robthetennisman »

Oh yeah I see now thank you :)
