Stutter and disk usage [SOLVED]

Post your questions here and we'll all try to help.
Post Reply
Futuro Pastelero
Posts: 4
Joined: Fri Jan 22, 2016 14:05

Stutter and disk usage [SOLVED]

Post by Futuro Pastelero »

Hello.

I've been trying to develop a mapping project which i have problems with.
When i run all layers at the same time it starts to stutter.
I checked on the resources dialog of my pc and noticed everytime stutter starts also the "Disk" is going from 30% average to 100%
Resolume seems to be using Disk at top so i dont know if its an issue related with my graphic card or my CPU. Wouldn't a saturation of processes affect CPU consumption rather than Disk?

Here is the specifications of the project im working out.

-Composition size set to 1280x720 and the mapping output set to 1366x760
-Every video clip is 360X480
-The composition has 8 active layers at all time.
-On the mapping output i have 14 active layers at all time
-I activated the option in advanced output to bring the signal directly from each layer to the mapping output, which means i have no effects working on the composition.

My laptop specs are
-Lenovo Ideapad 400y
-Windows 8.1
-Processor Intel Core i7-3630QM 2.40GHz
-Ram 6.00GB
-NVIDIA GeForce GT 750M 2gb

I checked the benchmark board Joris started 2 yrs ago and saw a slightly better computer than mine which had also similar limitations working around with up to 10 layers in 1280x720.
The point here is i dont know what is the problem: GPU, CPU, Disk (i dont know how that works, may i need a new one? too much processes?) or what.

Hope someone can help me with this.

Cheers !
Attachments

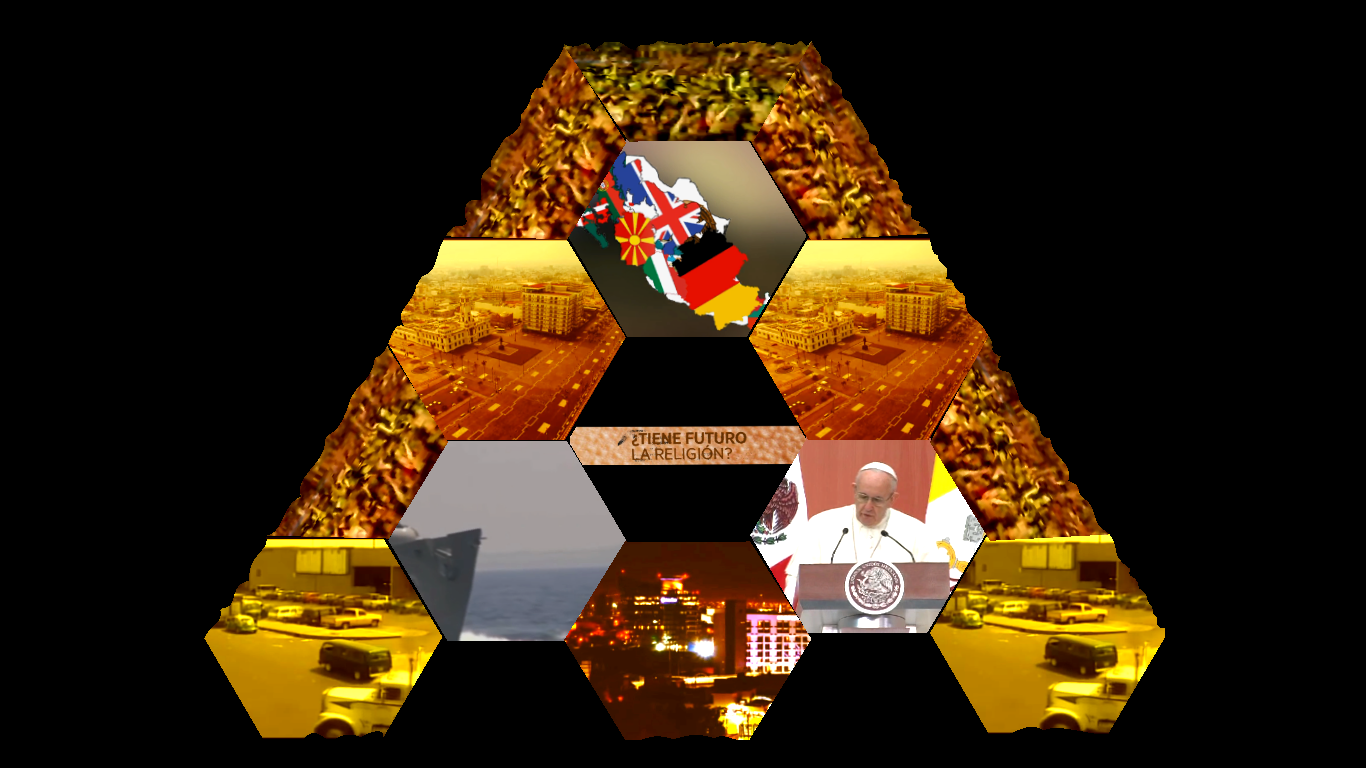

14 layers mapping
14 layers mapping

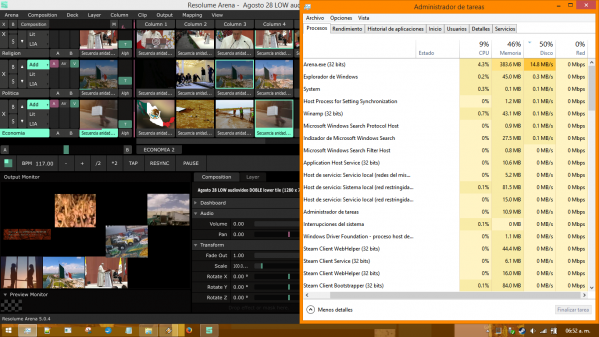

saturated disk
saturated disk
Last edited by Futuro Pastelero on Thu Sep 01, 2016 13:08, edited 1 time in total.

Zoltán
Team Resolume
Posts: 7483
Joined: Thu Jan 09, 2014 13:08
Location: Székesfehérvár, Hungary

Re: Stutter and disk usage

Post by Zoltán »

do you play the content from an SSD?
is the content all DXV?
Software developer, Sound Engineer,
Control Your show with ”Enter” - multiple Resolume servers at once - SMPTE/MTC column launch
try for free: http://programs.palffyzoltan.hu

Futuro Pastelero
Posts: 4
Joined: Fri Jan 22, 2016 14:05

Re: Stutter and disk usage

Post by Futuro Pastelero »

No, i run it from the internal HDD of the laptop.
And yes, all content is made on DXV3. I started rendering clips in 720 but i had to underscale them, always using DXV3

Edit:
I forgot to tell I also attached .wav sounds to 20 clips at least, which run at 3072kbps each.
The Disk still gets overworking even if no audio is used.

Zoltán
Team Resolume
Posts: 7483
Joined: Thu Jan 09, 2014 13:08
Location: Székesfehérvár, Hungary

Re: Stutter and disk usage

Post by Zoltán »

looks like you are reaching the read limits of the hdd.
reading 8 files simultaneously slows down read speeds a lot, because of the head seek times.

you'd need an SSD.
Software developer, Sound Engineer,
Control Your show with ”Enter” - multiple Resolume servers at once - SMPTE/MTC column launch
try for free: http://programs.palffyzoltan.hu

Futuro Pastelero
Posts: 4
Joined: Fri Jan 22, 2016 14:05

Re: Stutter and disk usage

Post by Futuro Pastelero »

Really?

i have a SSD and never thought it would be a better option than my local hdd to run videos.
hope i can get it working all together.

Thank you very much.

Edit:
I tried the SSD and everything goes really smooth.
Thanks !
Attachments

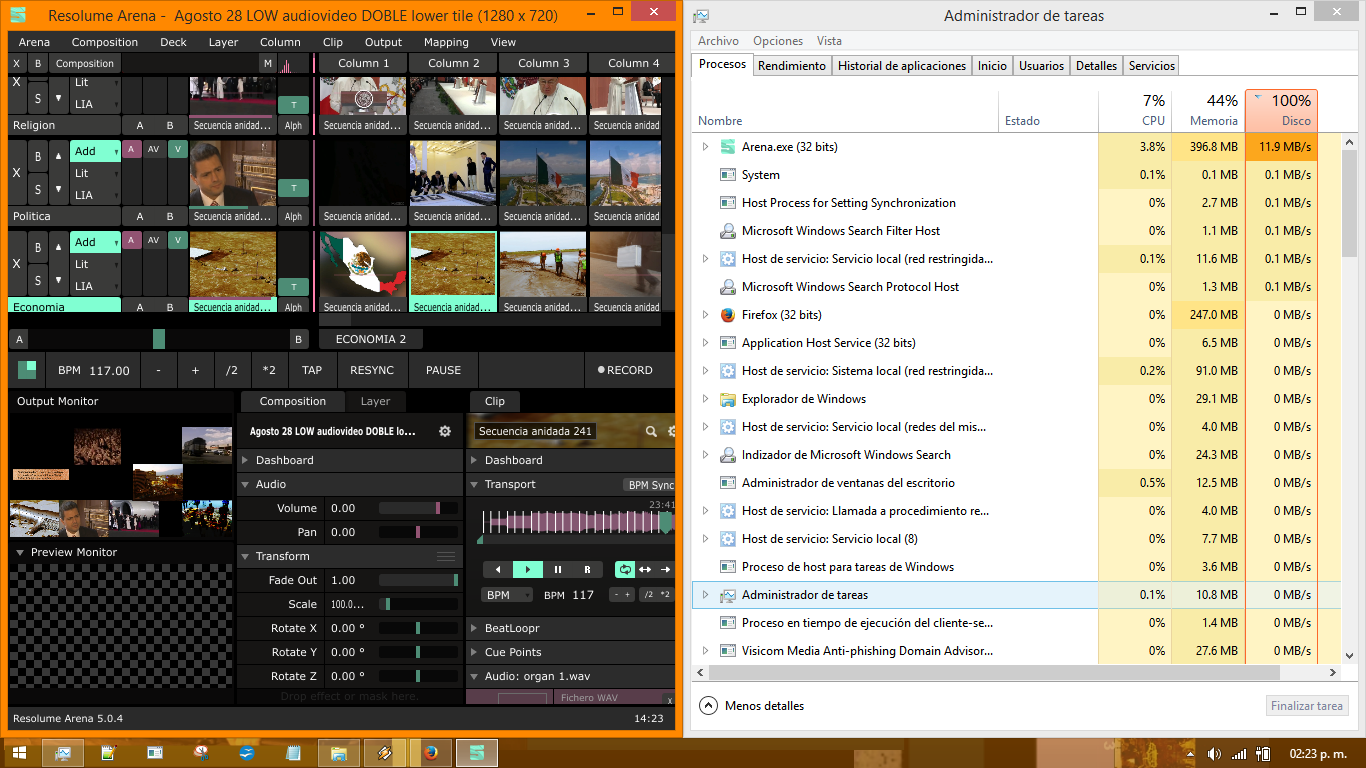

Captura de pantalla (598).png
