Resolume and 1024 channel extended DMX universe.

[vj_owl]

Hi folks!

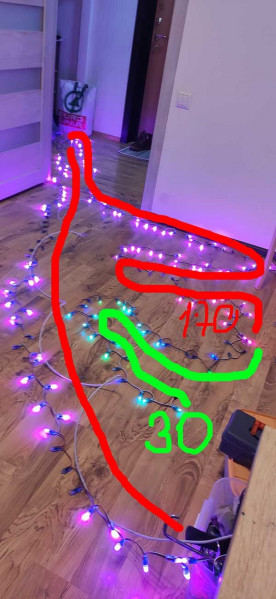

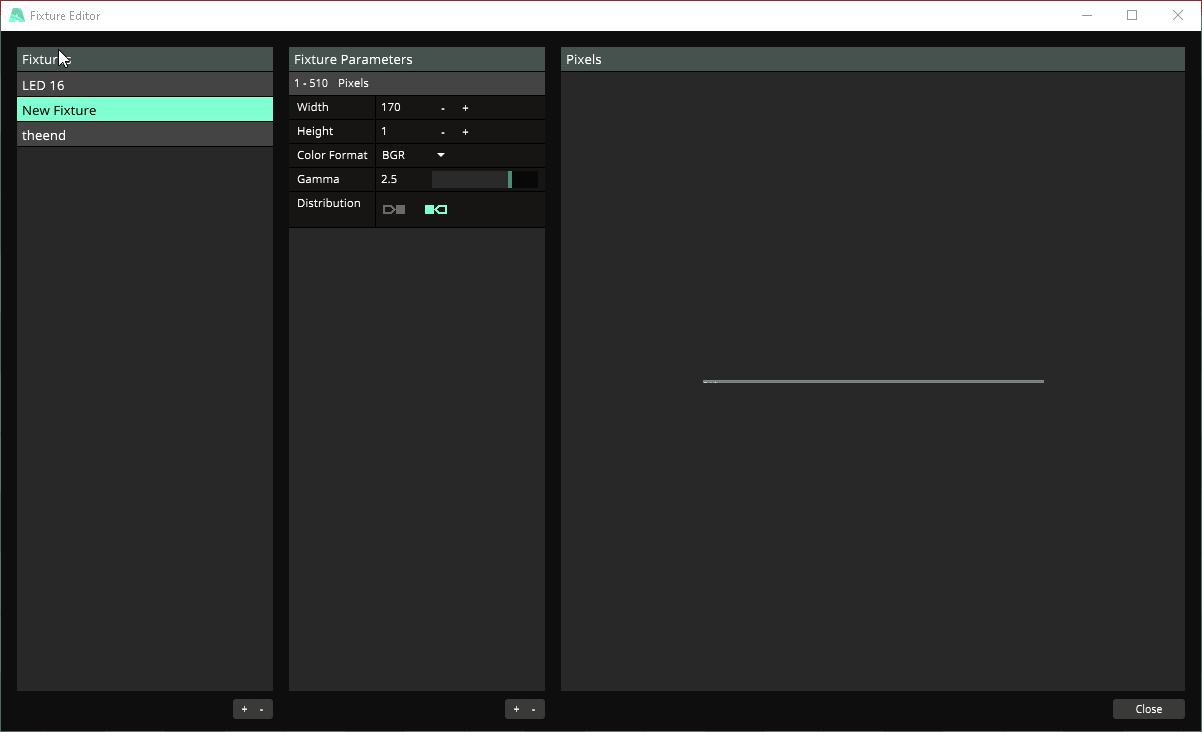

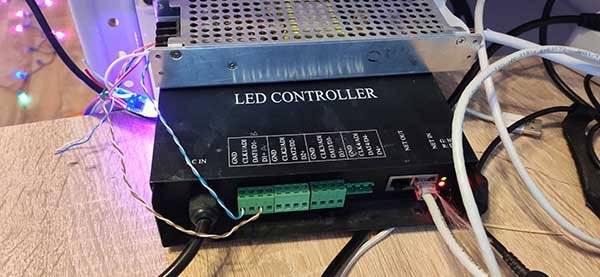

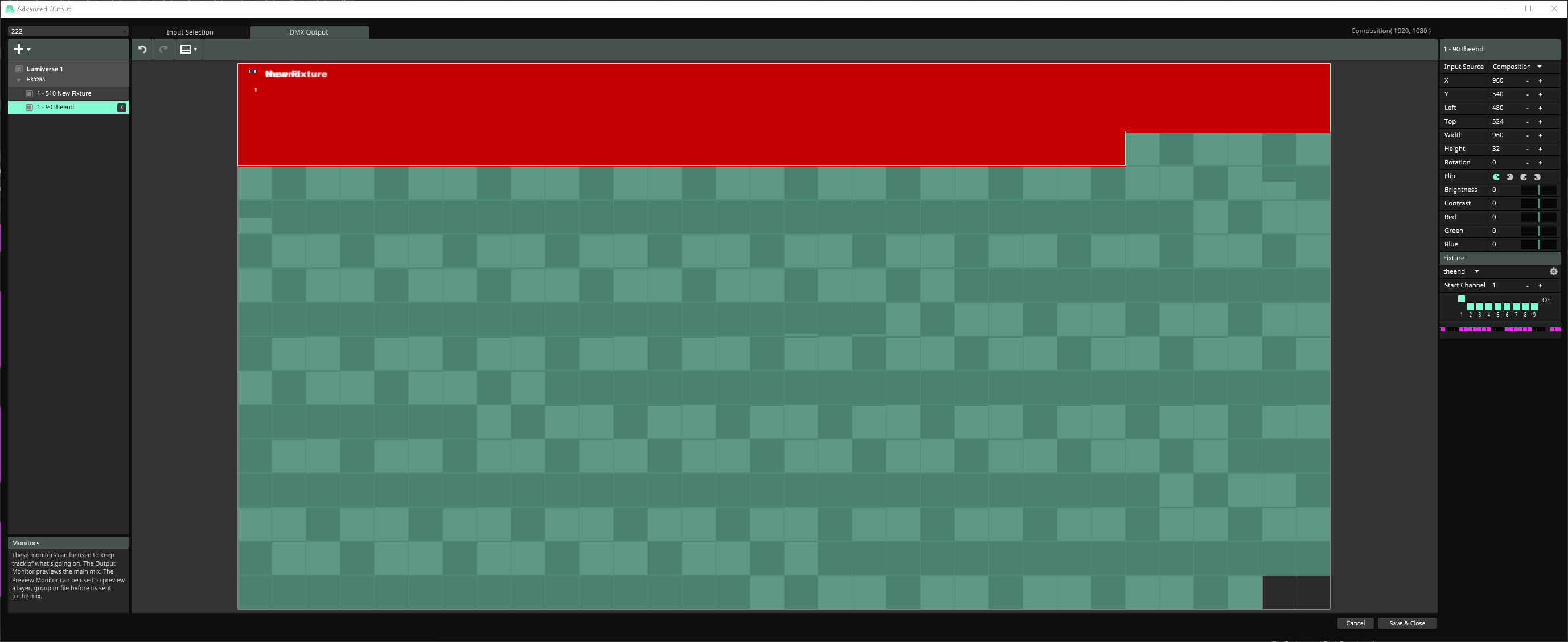

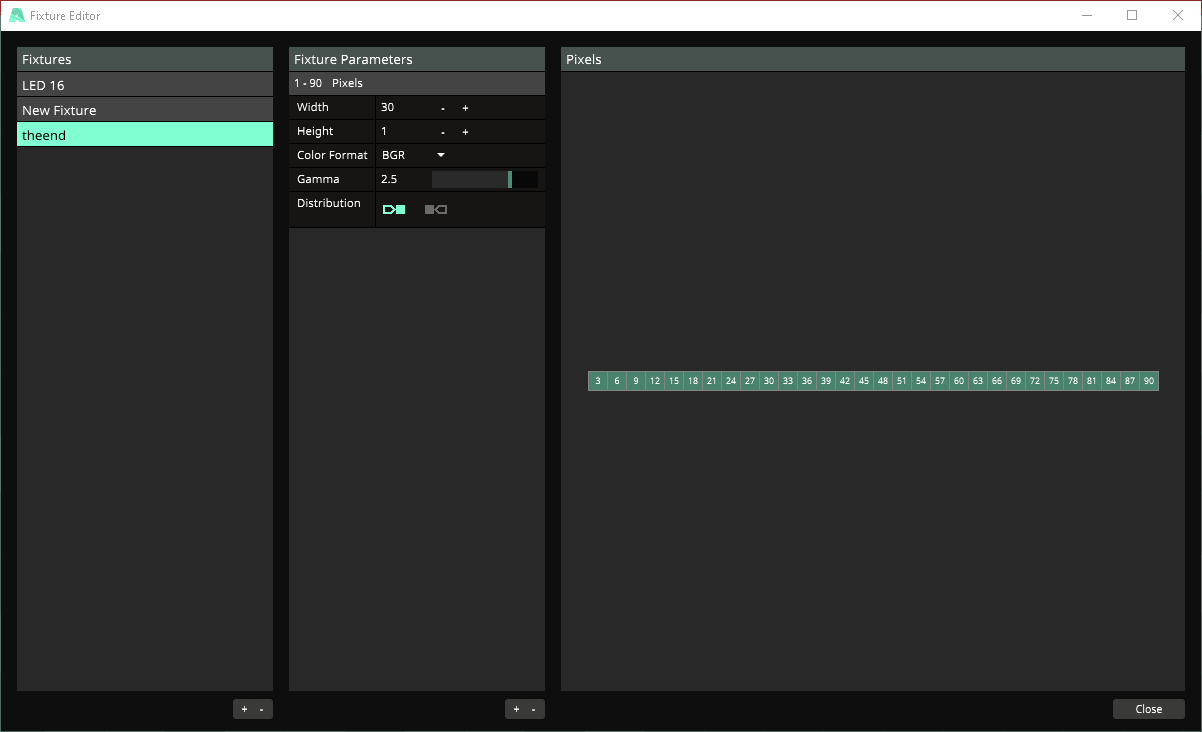

I have a project with H802RA artnet SPI Chinese led controller (4 out universes) and led pixels on ws2812 chip. Now I can only make 170 LED pixels in one universe or 510 channels at most. But the controller can support 1024 or even 2048 pixels per port. Chinese software like LED studio work without problems when there are more than 512 channels in the universe. But the resolume do not seem to be. I've tried different tricks but it seems I'm stumped. Is it possible to send more than 512 pixels into the ONE universe or to overlay channels of two different dmx fixture(like 170 for one fix and 30 for two fix). I have a task to make 200 RGB pixels per controller output.

Thanks for your attention!

[Zoltán]

https://resolume.com/support/en/dmx#auto-span

[jaseresolume]

I have recently purchased one of these H802RA controllers and have to say the set up for me has been a nightmare.
I can only assume from the lack of comments that they haven't been used much with #resolume.

If you can get 4x170 pix (510 channels) working per port and represented as 4 separate "Lumiverse's" in Resolume you're doing better than me.

..and if you have been able to I'd love some advice.
Cheers and good luck.

ps. In general ArtNet can carry a maximum of 4xDMX512.. therefore 2048 channels split 4 x 512.

[Zoltán]

We do better https://resolume.com/support/en/dmx#auto-span
